Scanimate Matrix Switch Panels

I am lucky today to have finally received two remnants of the venerable Scanimate machine.
It's part of a early analog computer that was used in animation.
From what I've read, there were only 8 made.

The Scanimate was invented by Lee Harrison III, founder of Computer Image, in Denver, Colorado in 1969. This system was used to help create the Scanimate Films, in combination with Jim Henson's puppeteering.

I understand that these cane from two that were housed at Image West in Hollywood

This is a big part of animation history.
Scanimates were used extensively on TV & film in the 70's & 80's. If you ever saw Sesame St, Willie Wonka & the Chocolate Factory, or The Electric Company, then you saw Scanimates in action.

I don't have the whole machine. Apparently this was destroyed and only some parts were saved from "a container" on it's way to China.

But what is left are two gems.

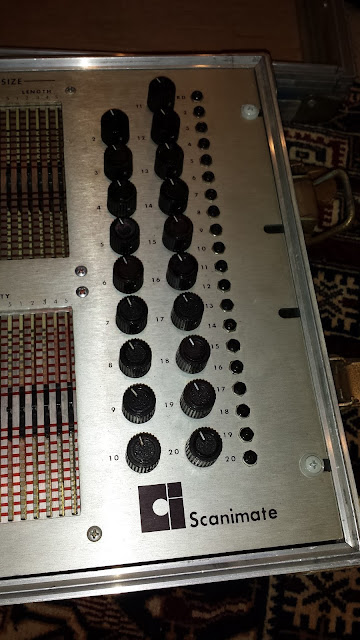

Each case has a 8 panel patch matrix with 19 potentiometers.
The patch matrix is the same type used by ARP for the 2500 synthesizer.
Which is the original reason I bought this.
The Cherry Sliders switches are extremely hard to find.

I would love to know what the "Commutator"& "Axis" were.

Final position, Initial position & size ????
If anyone understands this please shoot me an email.
