These are my build notes for the NLC FK1T VCF.
This VCF is based on the Korg FK-1 pedal, which is a similar VCF to the ones found in the 800dv, 770 and 700 synthesizers.
![]()
.....

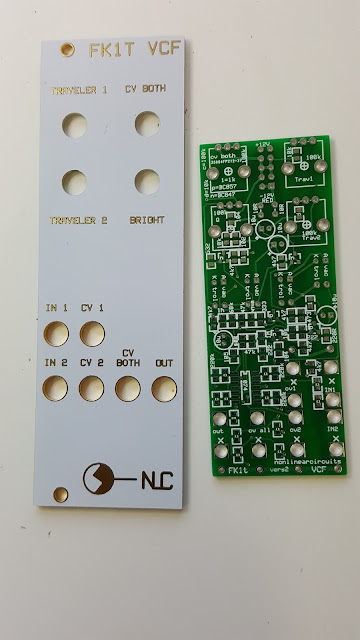

The virgin faceplate & PCB
![]()
..

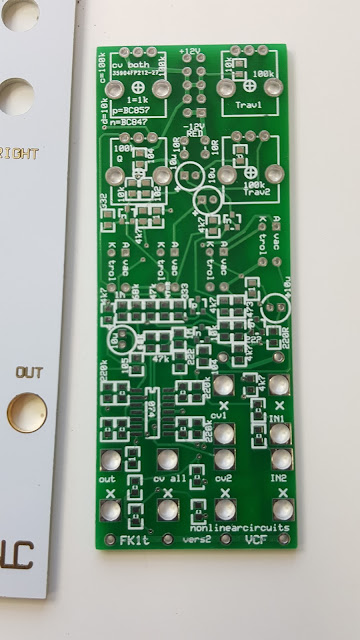

Mainly surface mount passive components. ... just one TL074 opamp.
![]()
...
![]()

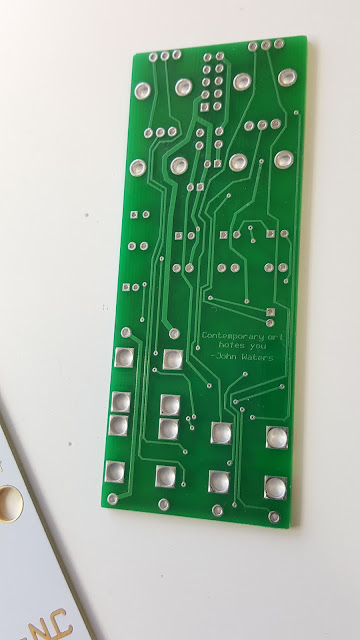

No NLC build would be complete without some words of wisdom
![]()
Contemporary Art Hates You - John Waters.
The point of art is to "wreck whatever came before it," he believes. "That something is pretty and beautiful is probably the worst thing you could say today in contemporary art...unless it's so pretty it's nauseating."
![]()
This 074 is hopefully the only tricky part of this build.
-----------------------------------
Links
NLC Build notes
To Be Continued. JP.
